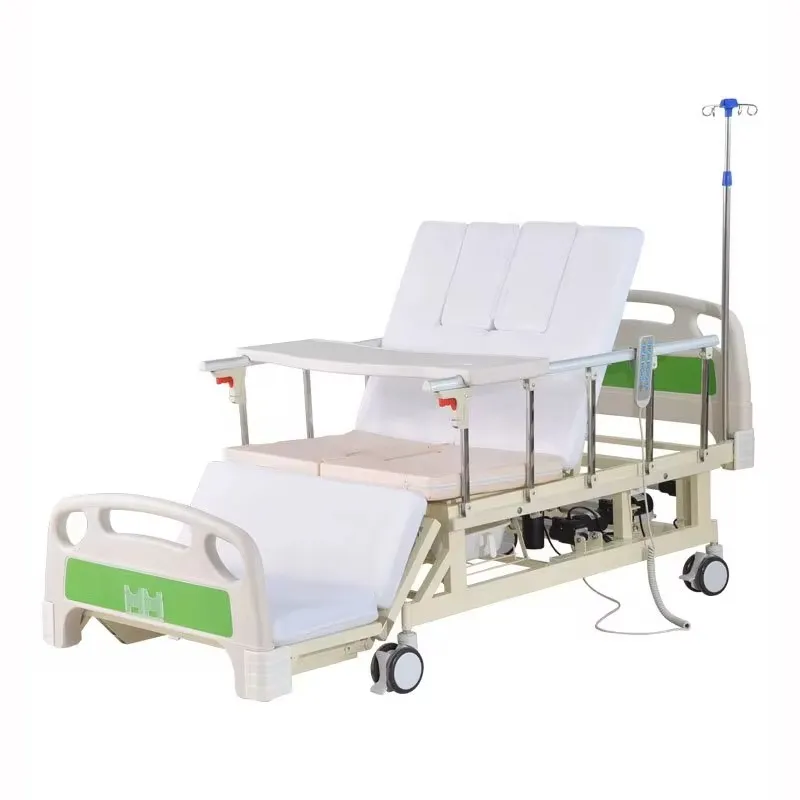

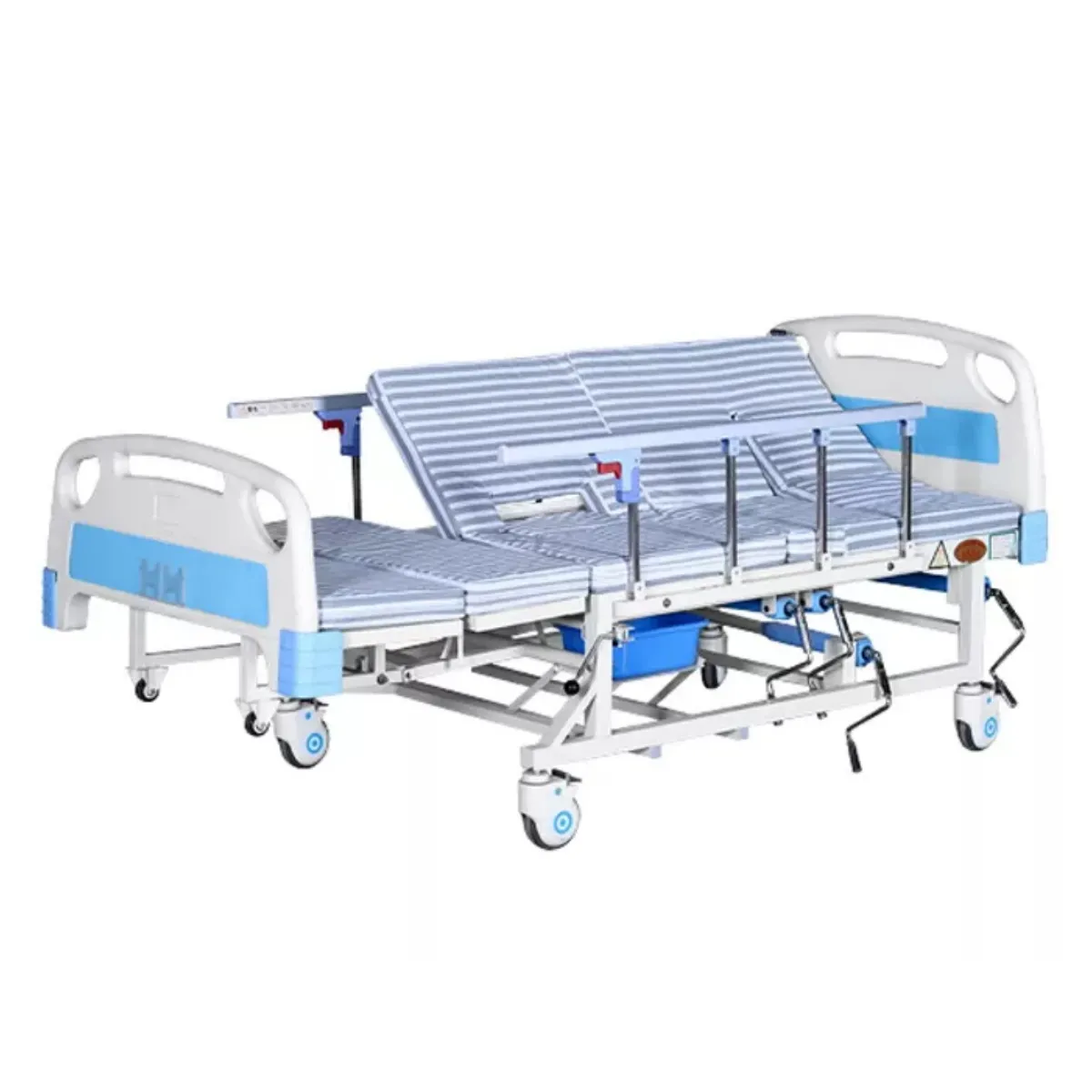

Multi-functions Nursing Bed
1.Functions
|
☑Backrest elevation |
|
☑Uward leg curving |
|
☑Body-turn |
|
☑Excretion |
|
☑washing hair |
|
☑Eating |
2.Specification
|
Overall bed length |
2020mm |
|
Overall bed width |
960mm
|
|
Overall bed width |
520mm |
|
Mattress base length |
2000mm |
|
Mattress base width |
900mm |
|
Backrest angle |
0-80° |
|
Leg section angle |
+25°-65° |
|
Safe working load, max.load |
260kg |
|
Bed frame on sides |
Thickness：1.0mm |
|
Bed frame at ends |
Thickness：1.0mm |
|
Bed leg |
Thickness：1.0mm |
|
Bed panel |
Thickness：1.0mm |
3.Components Of Bed
1. PP headboard；detachable
2. stainless steel stand aluminum alloy safety side rail
3. 125mm one-side mute castor with
4. independent brake
5. CE certified high-grade medical motor and hand controller
6. ABS crank
4.Basic Parameters
Profile size: (length x width x height of bed) 2080 × 960 × 560 mm
Function: Electric left and right rotation, electric backrest, electric leg position elevation, manual seat change
Backrest against lateral slippage: As the sitting angle of the human body increases, the bed boards on both sides move inward in a half-packed diagram to prevent patients from leaning sideways.
Sideward slippage prevention: With the lifting function, the leg support plate is raised upward, preventing the nurse from losing the effective sitting position during the backrest elevation, resulting in slippage and shifting of the sitting position.
The bed can be restored to a flat lying state with one button; there is no need to reset each function in sequence.
The programmed rotation time has two operating modes: 30 minutes and 45 minutes.
The motor ends are designed to prevent entanglement between the motor and the object during electrical maintenance.
The toilet becomes a quick manual faucet, which can open the toilet in 1 second, reducing waiting time.
Weight: 110 kg, working weight: 200 kg
