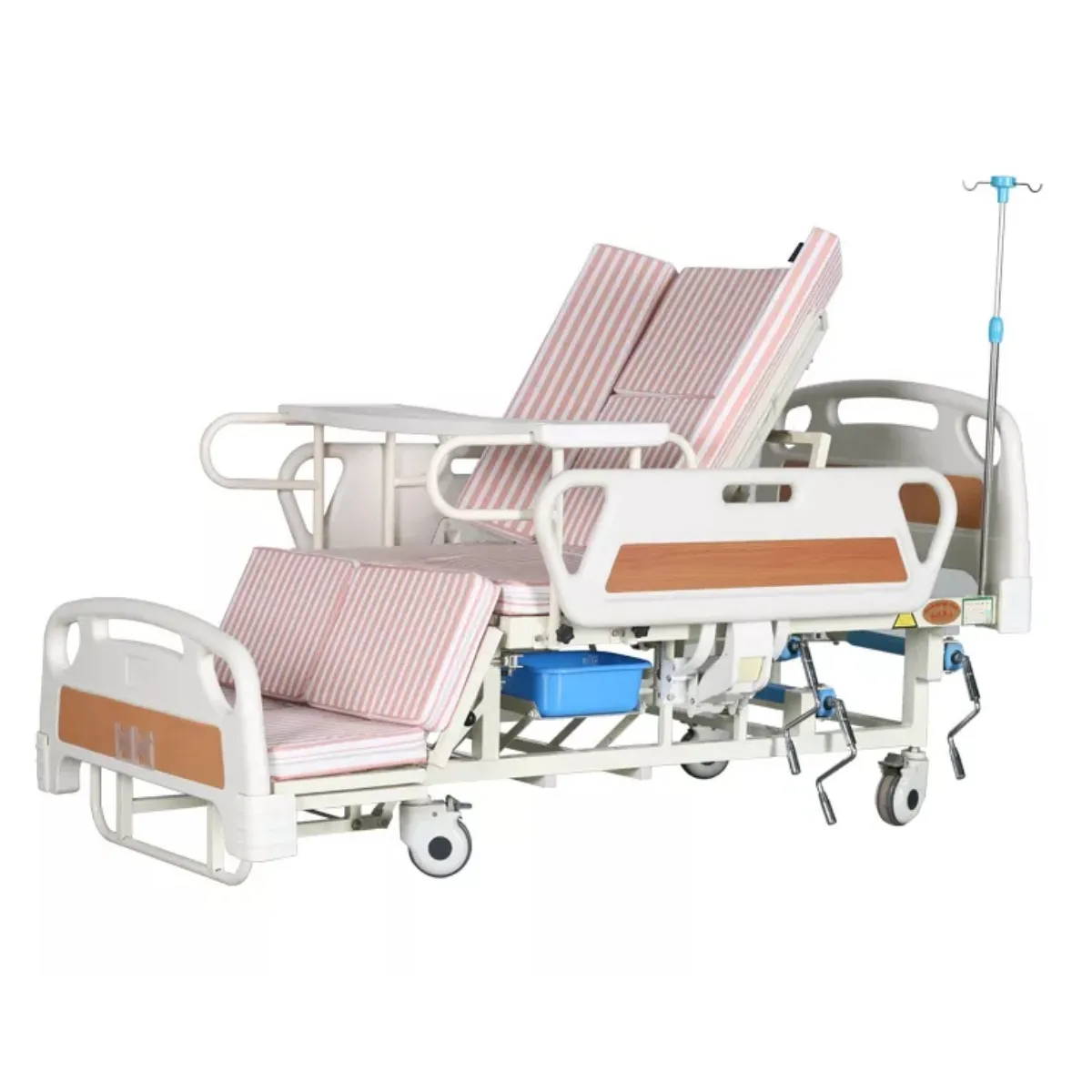

Hospital equipment Home adjustable multi-functional nursing beds
1.Functions
|
☑Backrest elevation |
|
☑Uward leg curving |
|
☑Body-turn |
|
☑Excretion |
|
☑washing hair |
|
☑Eating |
2.Technical parameters
|
●External L：2180mm |
●Bed Height：500mm |
|
●Mattress Platform：1980×900mm |
●Safe working load:250Kg |
|
●External W：1050mm |
|
3.Standard configurations
|
●Control box |
1pcs |
●Cranks |
4pcs |
|
●Castor |
1set |
●Mattress |
1pcs |
|
●I.V.pole |
1pcs |
●Bed Pan |
1pcs |
|
●Dining table |
1pcs |
●Head & Foot board |
1set |
|
●Square tube bed surface |
1set |
●Shampoo Basin |
pcs |
Basic Parameters:
Profile size: (length x width x height of bed) 2080 × 960 × 560 mm
Function: Electric left and right rotation, electric backrest, electric leg position elevation, manual seat change
Backrest against lateral slippage: As the sitting angle of the human body increases, the bed boards on both sides move inward in a half-packed diagram to prevent patients from leaning sideways.
Sideward slippage prevention: With the lifting function, the leg support plate is raised upward, preventing the nurse from losing the effective sitting position during the backrest elevation, resulting in slippage and shifting of the sitting position.
The bed can be restored to a flat lying state with one button; there is no need to reset each function in sequence.
The programmed rotation time has two operating modes: 30 minutes and 45 minutes.
The motor ends are designed to prevent the motor and object from becoming entangled during electrical care.
The toilet becomes a quick manual faucet, which can make the toilet open in 1 second, reducing waiting time
Weight: 110 kg working weight: 250 kg
