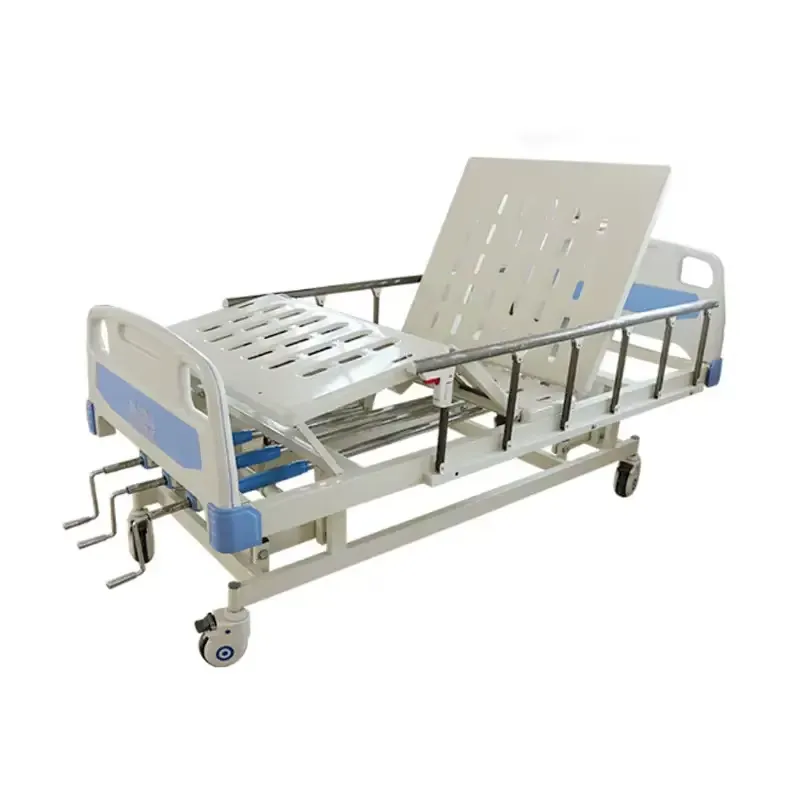

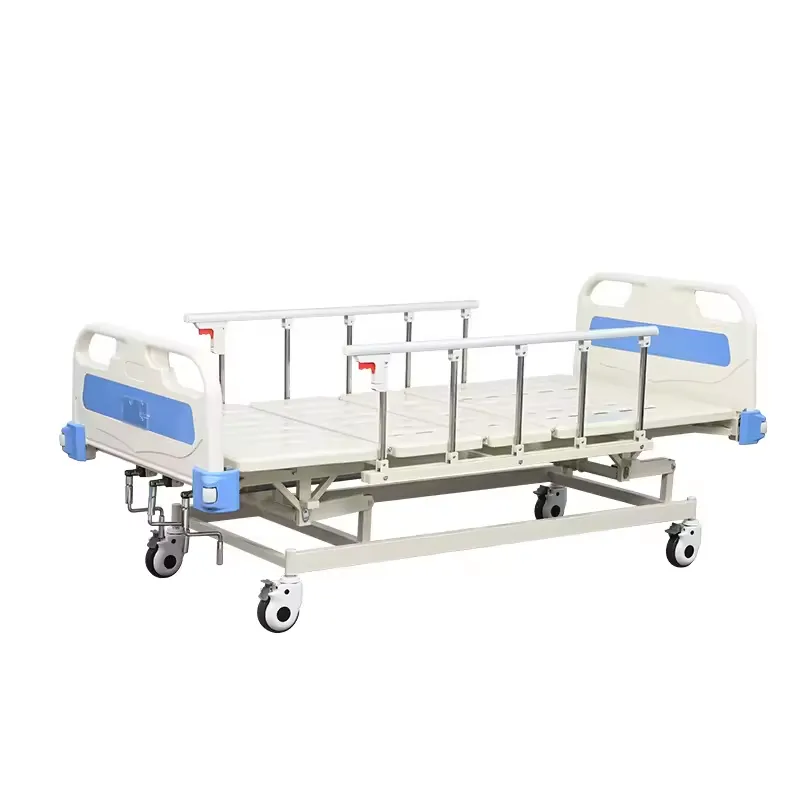

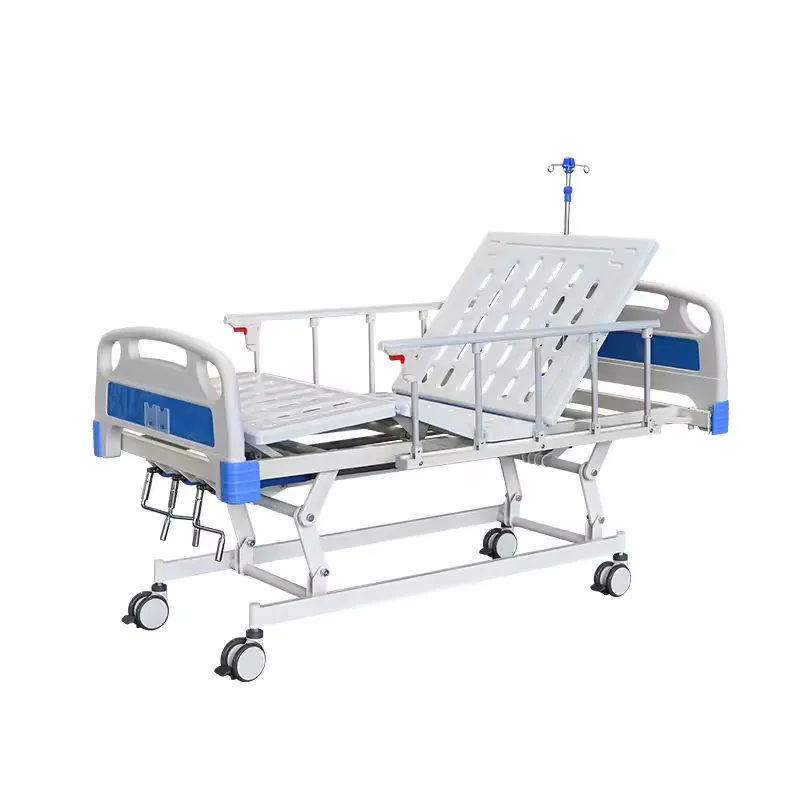

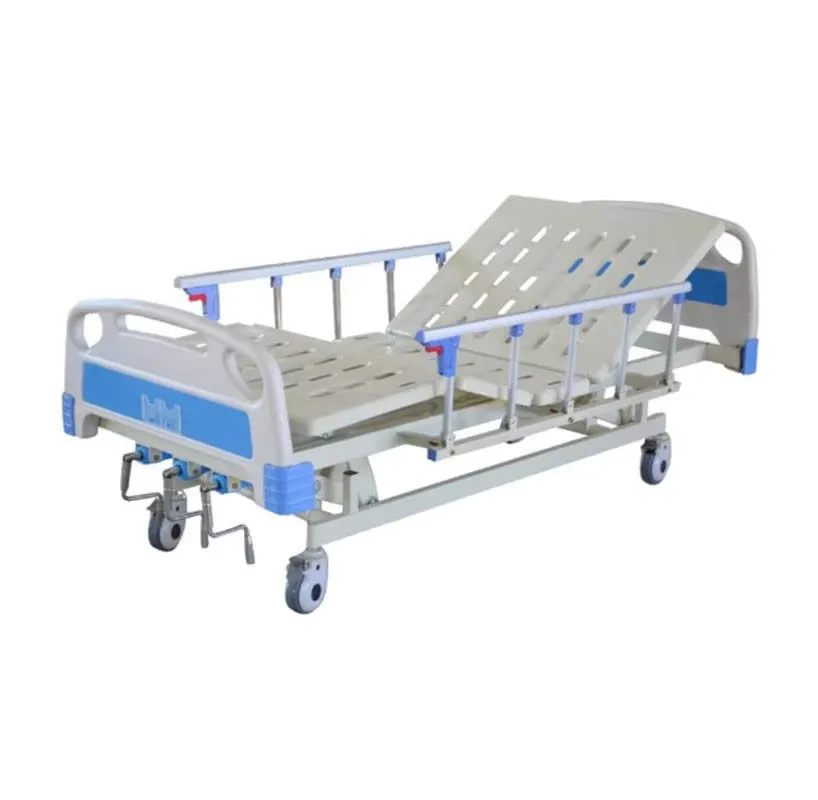

Adjustable 3 Cranks Hospital Bed
Standard Configurations:
|
External Length |
2150mm |
Bed Height Max |
750mm |
|
External Width |
1050mmd |
Mattress Platform |
1925*900mm |
|
Bed Height Min |
455mm |
Safe Working Load |
250kg |
|
Back-rest |
75°±10° |
Knee-rest |
35°±10° |
Technical Configuration:
|
Manual Cranks |
3pcs |
|
5” Single-Side Caster with Brake |
4pcs |
|
ABS Bed End with Safe Lock |
1sets |
|
6 Column Metal Side Rail |
1set |
|
IV Pole |
1pc |
|
IV Pole Prevision |
4pc |
|
Drainage hook |
2pcs |
|
Hand Controller |
1pcs |
Function:
Manual Crank System: Allows adjustment of back, leg, and height settings manually.
Back Section Can be adjusted up to 75°±10°.Leg Section Can be raised up to 35°±10°. The bed height can be altered from 455mm to 745mm
Double-sided 5-Inch Casterswith an anti-winding design, made from anti-slip and corrosion-resistant material.
Central Locking Pedal: Enables quick and secure locking of the bed’s casters for safety and ease of movement.
IV Pole and Provisions: Stainless steel IV pole, height-adjustable with four hooks, located at each bed corner for medical versatility.
Angle Indicators: Embedded in each guardrail for medical staff to easily monitor and adjust the bed’s angles.
ABS detachable head and foot board.
Robotic 360°all-round welding technology, seamless manufacturing processes
